Distributor For York Transport Equipment (I) Pvt. Ltd. For Gujarat/Madhya Pradesh

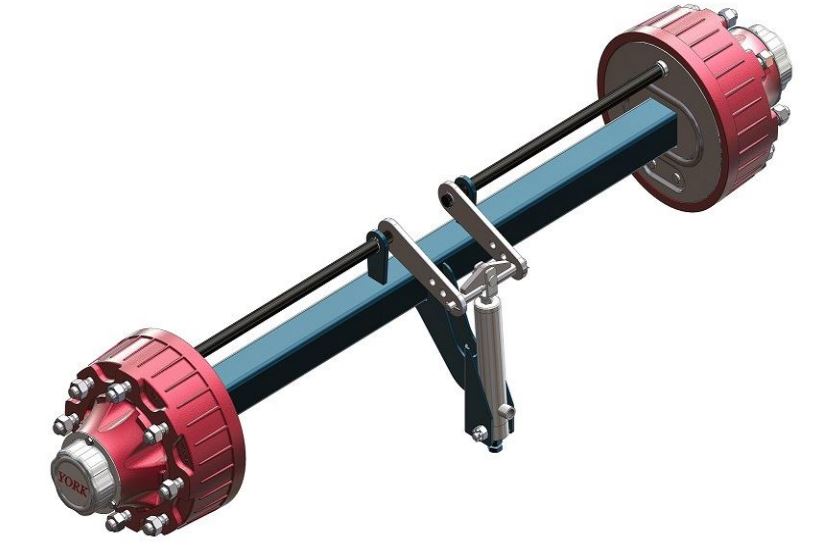

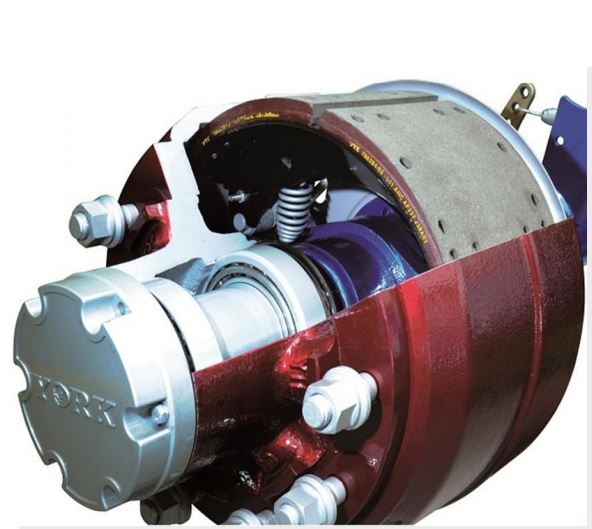

Axle – 5023 Model

Capacity	:	13 ton @105 Kmph,
Axle beam	:	6” square , 14 mm thick beam made of high tensile steel,
Spindle	:	Forged, Solid and induction hardened bearing journal,
Hub PCD	:	335 mm,
Inner bearing ID	:	90mm,
Outer bearing ID	:	65mm,
Brake size	:	420×180 mm (option of 420 x 220 mm brake available)
Brake drum	:	Inboard type,
Wheel bolts	:	M22 (fine thread) x 10 Nos.,
Track length	:	1850 mm to 2400 mm,
Hub grease life	:	150,000 Kms,
Weight	:	360 Kgs (1850TL axle),

Axle – 5641 Model (Road bull)

Capacity	:	14 ton
Axle beam	:	6” square , 16 mm thick high tensile steel beam,
Spindle	:	Forged and induction hardened bearing journal,
Hub PCD	:	335 mm
Inner bearing ID	:	90 mm (TP bearing),
Outer bearing ID	:	90 mm (TP bearing),
Brake size	:	420×180 mm,
Brake drum	:	Outboard type,
Wheel bolts	:	M22 (fine thread) x 10 Nos.,
Track length	:	1850 mm to 1950 mm,
Hub grease life	:	150,000 Kms (400,000 kms optional)
Weight	:	380 Kgs (1850TL axle),

Axle – 5651 Model

Capacity	:	15 ton
Axle beam	:	6” square , 16 mm thick beam made of high tensile steel,
Spindle	:	Forged and induction hardened bearing journal,
Hub PCD	:	335 mm,
Inner bearing ID	:	100mm,
Outer bearing ID	:	90mm,
Brake size	:	420×180 mm,
Brake drum	:	Inboard type,
Wheel bolts	:	M22 (fine thread) x 10 Nos.,
Track length	:	1850 mm to 1950 mm,
Hub grease life	:	150,000 Kms,
Weight	:	395 Kgs (1850TL axle),

Axle – 8002 Model (Round Axle)

Capacity	:	15 ton @105 Kmph,
Axle beam	:	5” round, 25 mm thick seamless vanadium steel beam,
Spindle	:	Forged and induction hardened bearing journal,
Hub PCD	:	335 mm,
Inner bearing ID	:	100mm,
Outer bearing ID	:	90mm,
Brake size	:	420×220 mm,
Brake drum	:	Inboard type,
Wheel bolts	:	M24 (fine thread) x 10 Nos.,
Track length	:	1850 mm to 3000 mm,
Hub grease life	:	150,000 Kms,
Weight	:	390 Kgs (1850TL axle),

Axle – 8021 Model

Capacity	:	18 ton @105 Kmph,
Axle beam	:	6” square , 32 mm thick beam made of high tensile steel,
Spindle	:	Forged and induction hardened bearing journal,
Hub PCD	:	335 mm,
Inner bearing ID	:	100mm,
Outer bearing ID	:	90mm,
Brake size	:	420×220 mm,
Brake drum	:	Inboard type,
Wheel bolts	:	M24 (fine thread) x 10 Nos.,
Track length	:	1850 mm to 3000 mm,
Hub grease life	:	150,000 Kms,
Weight	:	445 Kgs (1850TL axle),

Axle – 9501 Model

Capacity	:	12 ton,
Axle beam	:	5” round, 19 mm thick seamless vanadium steel,
Spindle	:	Forged and induction hardened bearing journal,
Hub PCD	:	225 mm,
Inner bearing ID	:	90mm,
Outer bearing ID	:	65mm,
Brake size	:	311×178 mm,
Brake drum	:	Inboard type,
Wheel bolts	:	M22 (fine thread) x 10 Nos.,
Track length	:	1850 mm to 3000 mm,
Hub grease life	:	150,000 Kms,
Weight	:	300 Kgs (1850TL axle),

Axle – R08 Model

Capacity	:	9 ton to 12 ton,
Axle beam	:	5” round beam (thickness varies from 16 mm to 25 mm based on axle capacity),
Spindle	:	Forged and induction hardened bearing journal,
Hub PCD	:	225 mm,
Inner bearing ID	:	90mm,
Outer bearing ID	:	65mm,
Brake size	:	311×178 mm,
Brake drum	:	Inboard type,
Wheel bolts	:	M22 (fine thread) x 10 Nos.,
Track length	:	750 mm to 850 mm,
Hub grease life	:	150,000 Kms,
Weight	:	275 kgs

Car Carrier Axle

Capacity	:	11 ton,
Axle beam	:	5” round high tensile strength seamless beam (16mm)
Spindle	:	Forged and induction hardened bearing journal,
Hub PCD	:	335 mm,
Inner bearing ID	:	90mm,
Outer bearing ID	:	65mm,
Brake size	:	420×180 mm,
Brake drum	:	Inboard type,
Wheel bolts	:	M22 (fine thread) x 10 Nos.,
Track length	:	2400 mm,
Hub grease life	:	150,000 Kms,
Weight	:	390 Kgs,

Agri Axle

Capacity	:	5 ton @20 Kmph,
Axle beam	:	75 mm high tensile solid rectangular beam,
Spindle	:	Solid,
Hub PCD	:	275 mm,
Inner bearing ID	:	65mm,
Outer bearing ID	:	65mm,
Brake size	:	304×100 mm,
Brake drum	:	Integral with hub,
Wheel bolts	:	M20 x 8 nos.,
Track length	:	1300 mm to 1600 mm,
Hub grease life	:	150,000 Kms,
Weight	:	172 Kgs (1555 TL axle),

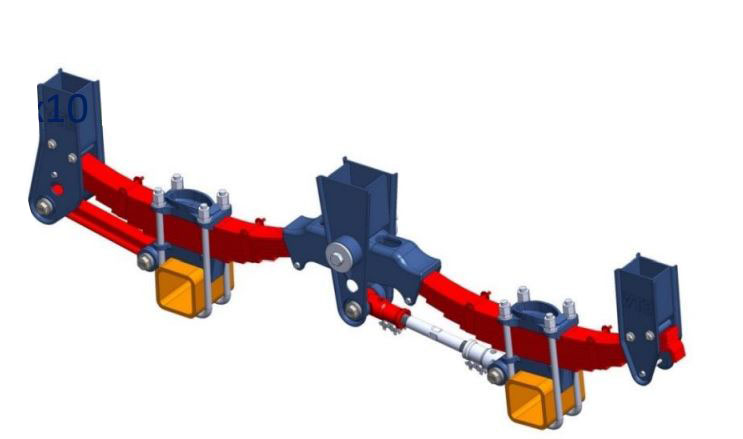

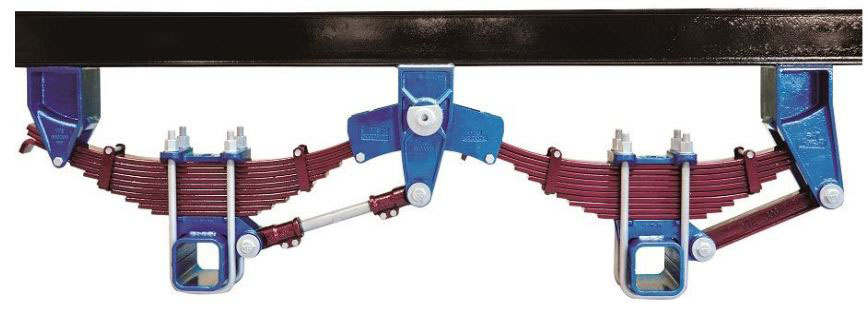

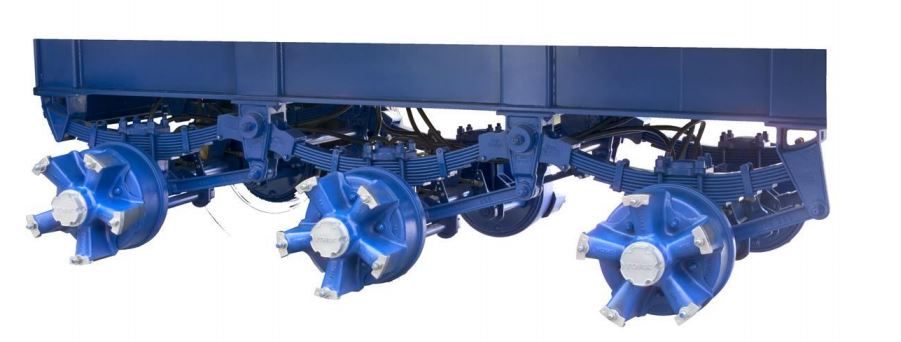

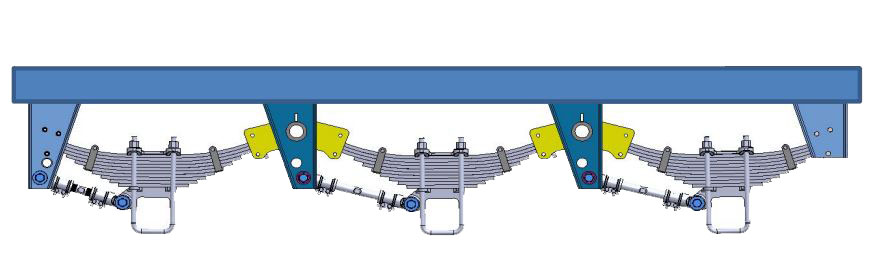

Mechanical Suspension – YTE 75 HD

Capacity	:	13 Ton,
Hangers	:	Cast steel hangers,
Ride Height	:	425 mm & 450 mm,
Leaf spring	:	75 mm (width) x13 mm (thick) x10 nos.
Axle spacing	:	1360 mm,
Equalizer bushes	:	Taper poly bushes,
Torque arm bushes	:	Taper poly bushes,
U bolts	:	M22,
Options	:	Mono, Tandem & Tridem,
Suitable	:	For round and square axles.
Weight	:	Tandem set – 430 kgs , Tridem set – 662 kgs.

Mechanical Suspension – YTE 75 FB

Capacity	:	12 Ton (with 9 leaves pack),
Capacity	:	13 Ton (with 10 leaves pack and inverse U bolt mounting)
Hangers	:	6 mm thick high tensile steel sheet,
Ride Height	:	560 mm,
Leaf spring	:	75 mm (width) x13 mm (thick) x10 nos.,
Axle spacing	:	1360 mm,
Equalizer bushes	:	Taper poly bushes,
Torque arm bushes	:	Taper poly bushes,
U bolts	:	M22 (Inverted mounting system),
Options	:	Mono, Tandem & Tridem,
Weight	:	Tandem set – 460 kgs, Tridem set – 705 kgs.

Mechanical Suspension – YTE 75 HD FB

Capacity	:	14 Ton,
Hangers	:	8mm thick high tensile steel sheet,
Ride Height	:	425 mm & 450 mm,
Leaf spring	:	75 mm (width) x13 mm (thick) x10 nos.
Axle spacing	:	1300 mm & 1360 mm,
Equalizer bushes	:	Self lubricating bushes,
Torque arm bushes	:	Taper poly bushes,
U bolts	:	M22,
Options	:	Mono, Tandem & Tridem,
Weight	:	Tandem set – 540 kgs , Tridem set – 805 kgs.

Mechanical Suspension – YTE 75/90 FB

Capacity	:	16 Ton,
Hangers	:	8mm thick high tensile steel sheet,
Ride Height	:	Two variants (560 mm & 590 mm),
Leaf spring	:	75 mm (width) x16 mm (thick) x10 nos.,
Axle spacing	:	1300 mm,
Equalizer bushes	:	High lube bushes,
Torque arm bushes	:	Taper poly bushes,
U bolts	:	M24, (Inverted mounting system),
Options	:	Mono, Tandem & Tridem,
Weight	:	Tandem set – 580 kgs , Tridem set – 860 kgs.

Mechanical Suspension – YTE 90

Capacity	:	18 Ton,
Hangers	:	Heavy duty Cast steel hangers,
Ride Height	:	533 mm,
Leaf spring	:	90 mm (width) x16 mm (thick) x10 nos.
Axle spacing	:	1300 mm (Optional 1540 mm)
Equalizer bushes	:	Self lubricating bushes,
Torque arm bushes	:	Taper poly bushes,
U bolts	:	M24,
Options	:	Mono, Tandem & Tridem,
Weight	:	Tandem set – 620 kgs, Tridem set – 950 kgs.

Mechanical Suspension – YTE 75 Underslung FB

Capacity	:	12 Ton with 9 leaves pack & 13 ton with 10 leaves pack,
Hangers	:	8mm thick high tensile steel sheet,
Ride Height	:	200 mm with 10 leaf,
Leaf spring	:	75 mm (width) x13 mm (thick) x10 nos.,
Axle spacing	:	1300 mm,
Equalizer bushes	:	High lube bushes,
Torque arm bushes	:	Taper poly bushes,
U bolts	:	M22,
Options	:	Mono, Tandem & Tridem,
Weight	:	Tandem set -480 kgs , Tridem set – 750 kgs

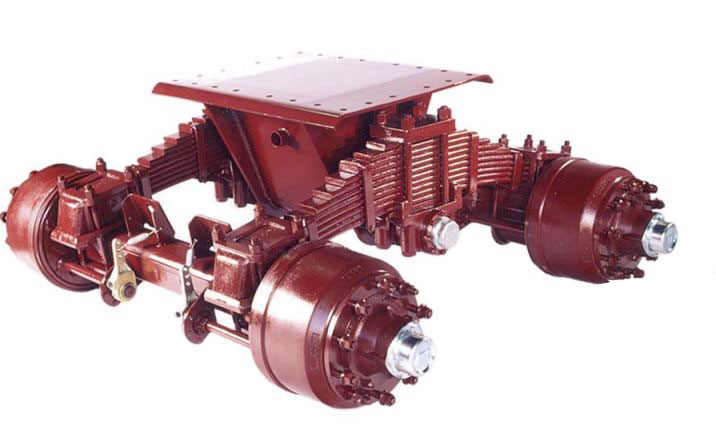

DNH8 MK2 Bogie Suspension

Single pivot + flexible spring, which allows more axle oscillation, very good load distribution function even for logging operation or off-road operation.
Big size non-metallic bushed in main pivot bearing for longer life ( 140 Shaft for DN8).
Supplied with 18 ton round axle,
Capacity : 36 ton with 18 ton axle fitment.
Weight of bogie with axles: 2000 kgs

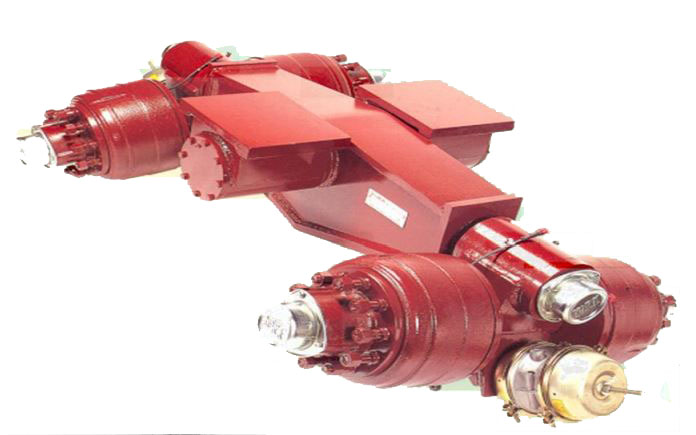

AGB 80/20 MK2 Argonaut Suspension

A bogie with 4 short axles on single pivot and rigid arms.

Very stable for platform trailer carrying heavy equipment.
4 axles and more can be used , bronze bushes at pivot points allow capacity up to 80 ton at low speed
Suitable for 10*20 Tyres

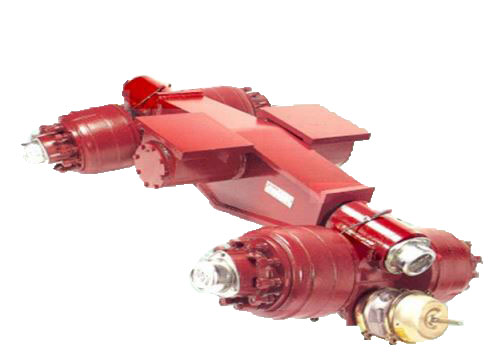

AGB 100/20 MK2 Argonaut Suspension

A bogie with 4 short axles on single pivot and rigid arms.
Very stable for platform trailer carrying heavy equipment.
4 axles and more can be used , bronze bushes at pivot
points allow capacity up to 100 ton at low speed,
Suitable for 10* 20 tyres, 11* 20 tyres

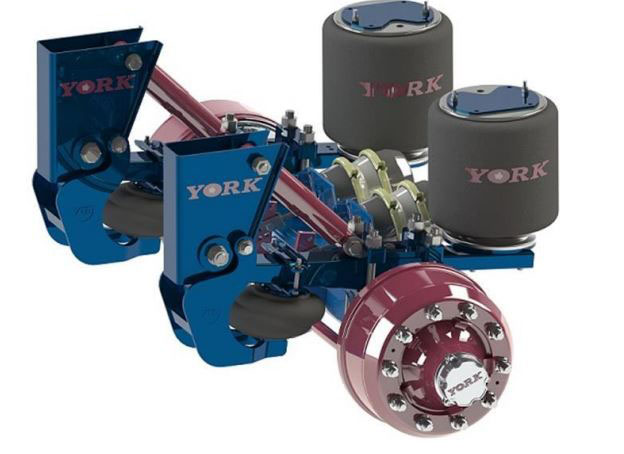

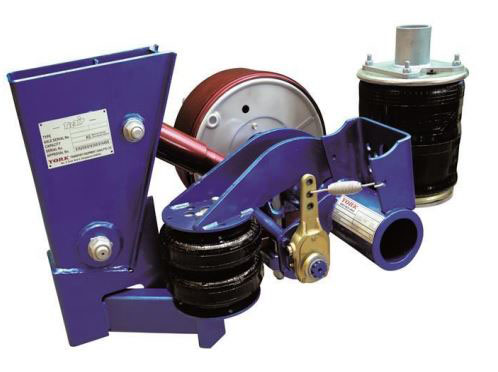

Tecair 1 Air Suspension

Capacity	:	12 Ton,
Hangers	:	6 mm thick high tensile steel sheet,
Ride height	:	200 mm, 400 mm, 575mm & 640 mm,
Leaf spring	:	45 mm thick double parabolic leaf spring,
Pivot bushes	:	Long life high quality rubber embedded bushes
U Bolts	:	M24,
Lift System	:	Common Lift with air bellow,
Shock absorber	:	HD Shock absorber with higher dampen characteristics
Bellow support	:	Heavy duty bottom plate below all air bellows for better strength and long life of Air bellows.
Weight /Module	:	225 kgs for Non lift, 240 kgs with Lift system

Tecair 1 HD Air Suspension

Capacity	:	12 Ton,
Hangers	:	Heavy duty 6 mm thick high tensile steel sheet,
Air Bellow support	:	Heavy duty bottom mounting and top mounting plate of air bellows for better strength and longer life,
Ride height	:	200 mm, 400 mm, 575mm & 640 mm,
Leaf spring	:	45 mm thick double parabolic leaf spring,
Pivot bushes	:	Long life rubber embedded bushes
U Bolts	:	M24,
Lift System	:	Common & Side Lift options air bellow,
Shock absorber	:	HD Shock absorber with higher dampen characteristics
Weight /Module	:	225 kgs for Non lift, 250 kgs with Lift system
